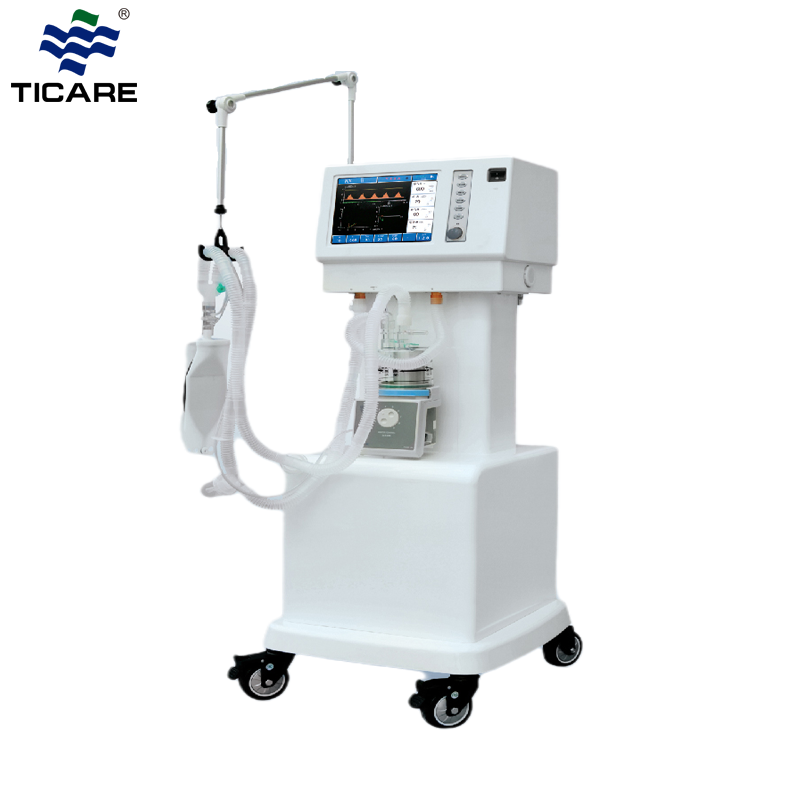

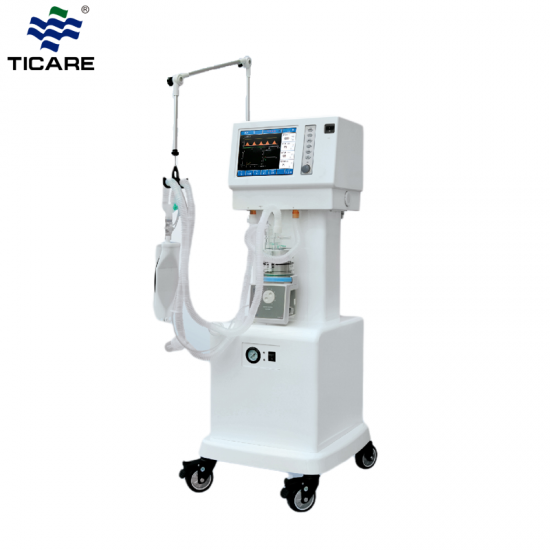

Ventilators Machine CPAP For Icu Hospital Use

In modern clinical medicine, the ventilator, as an effective means to artificially replace the autonomous ventilation function, has been commonly used in various reasons for respiratory failure, anesthesia breathing management during major operations, respiratory support treatment and emergency recovery. It occupies a very important position in the field of modern medicine. The ventilator is a vital medical device that can prevent and treat respiratory failure, reduce complications, and save and prolong the lives of patients.
  • Brand:

    TICARE
  • Item no.:

    TC2000B
  • Market price:

    $12000
  • Price:

    $10000/pc
  • Price range:

    1 - 10/$10000
  • Product origin:

    China
  • Color:

    White ,black etc
  • Goods_stock:

    3000
  • Product weight:

    5.4kgs
  • Shipping port:

    shanghai/guangzhou
  • Lead Time:

    5-7days
  • Product Detail


Ventilators Machine For Icu Hospital Use

Icu Ventilator For Hospital has CE and FDA certificates and meets European and American standards.

The Ventilator is a model of multi-purpose life-support machine. This machine uses the air operated electric control, the microcomputer technology. Selects imports the primary device to guarantee the equipment movement stably reliable. Colored (TFT) the screen demonstrates each kind of examination and the establishment parameter,  which is a section of ideal breath treatment plant. It is suitable in all different levels of hospitals for internal medicine of surgery, gynecology, pedology, first aid, ICU and so on which are administrative offices equipments.

Icu Ventilator For Hospital


Main technical parameters

Ventilator

■Display mode :10.4-inch High-definition TFT color LCD screen display

■Ventilation  mode:VCVPCVSIMVPSVPSV+SIMVCPAP

■Ventilation  function:PEEP、SIGH standby IPIRV

■Ventilation parameters

tidal volume:201800ml

rate:2120bpm

SIMV rate:220bpm

I:E:4:11:8

Inspiratory trigger pressure:-1010 cmH2O

Flow trigger sensitivity:1-20L/min

PEEP:025 cmH2O

Pressure control:360 cmH2O

Presure limit:560 cmH2O

Pressure slope:110 gear

Flow rate setting:110 gear

Expiratory trigger sensitivity:10%90%

Time control:110s

SIGH:1.5 times the inspiratory time(60-120 times adjustable

Inspiratory platform:050%

Oxygen concentration:21%99%

Icu Ventilator For Hospital



■ Parameters for ventilation monitoring

VI tidal volume, VE tidal volume, Minute Ventilation volume,  IPPV rate, SIMV rate,  total respiratory rate, autonomous breathing rate, I/E, peak pressure of airway, average pressure, PEEP, Inspiratory trigger pressure, inspiratory platform, oxygen concentration, battery capacity , pressure - time waveform, flow rate - time waveform, flow-volume loop, pressure –volume loop

■Security Alarm System

Oxygen Concentration alarm

upper limit setting range:21%99%

low limit setting range:18%80%

Airway pressure alarm

upper limit setting range:560 cmH2O

low limit setting range:050 cmH2O

minute ventilation volume alarm

upper limit setting range:120L/min

low limit setting range:019L/min

Tidal volume

upper limit setting range:101800ml

low limit setting range:01700ml

Respiratory rate

upper limit setting range:1099bPm

low limit setting range:050 bPm

Sustained high-pressure alarm:it will give alarm when stress have consistently been higher than 30 cmH2O

Suffocation alarm

Gas shortage alarm

Low pressure of Oxygen alarm

Low pressure of Air alarm

Power alarm

Intubation off alarm

battery voltage alarm

■Power:AC 220V     50Hz

UPS Storage Battery

■ Manipulator
■ air compressor with standby function
